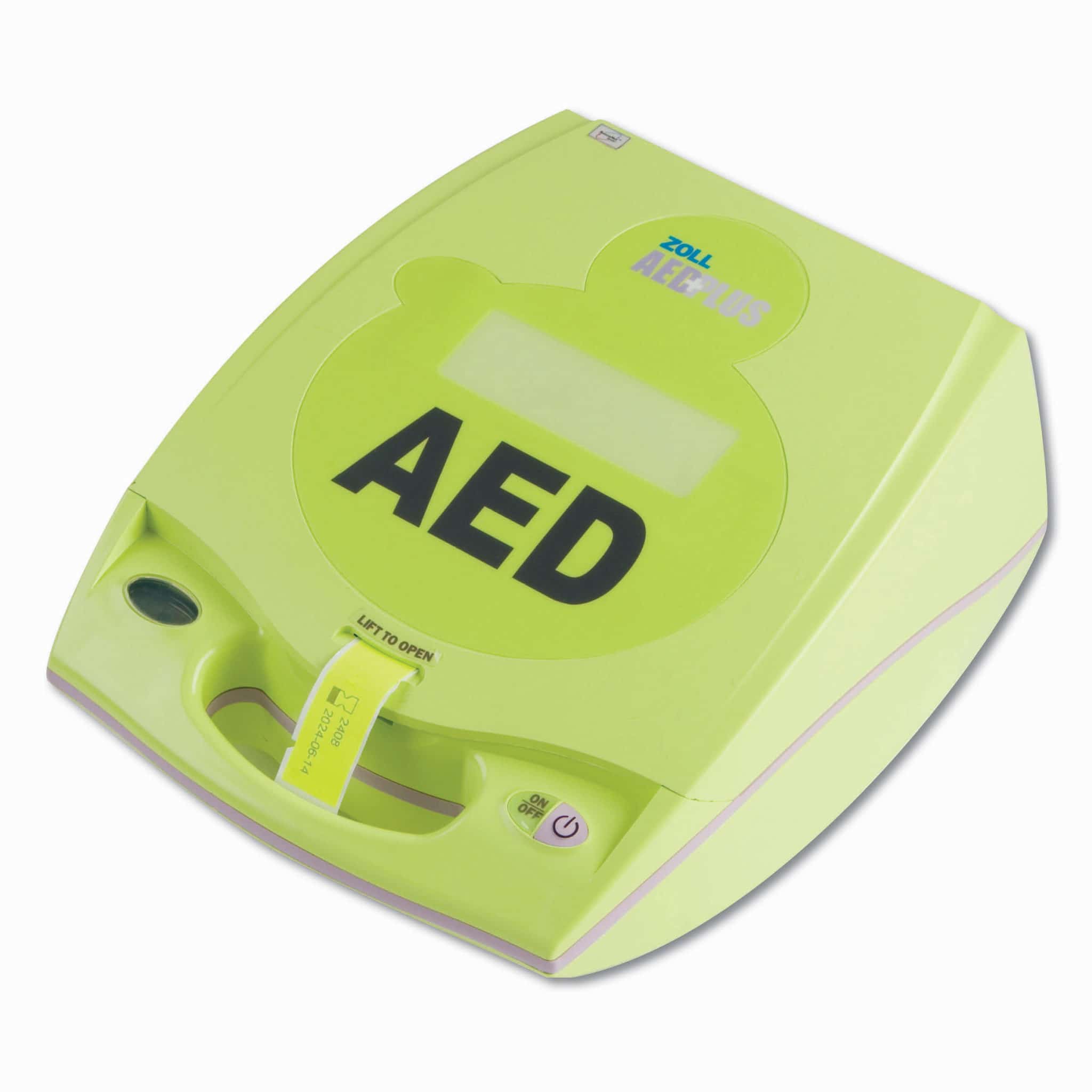

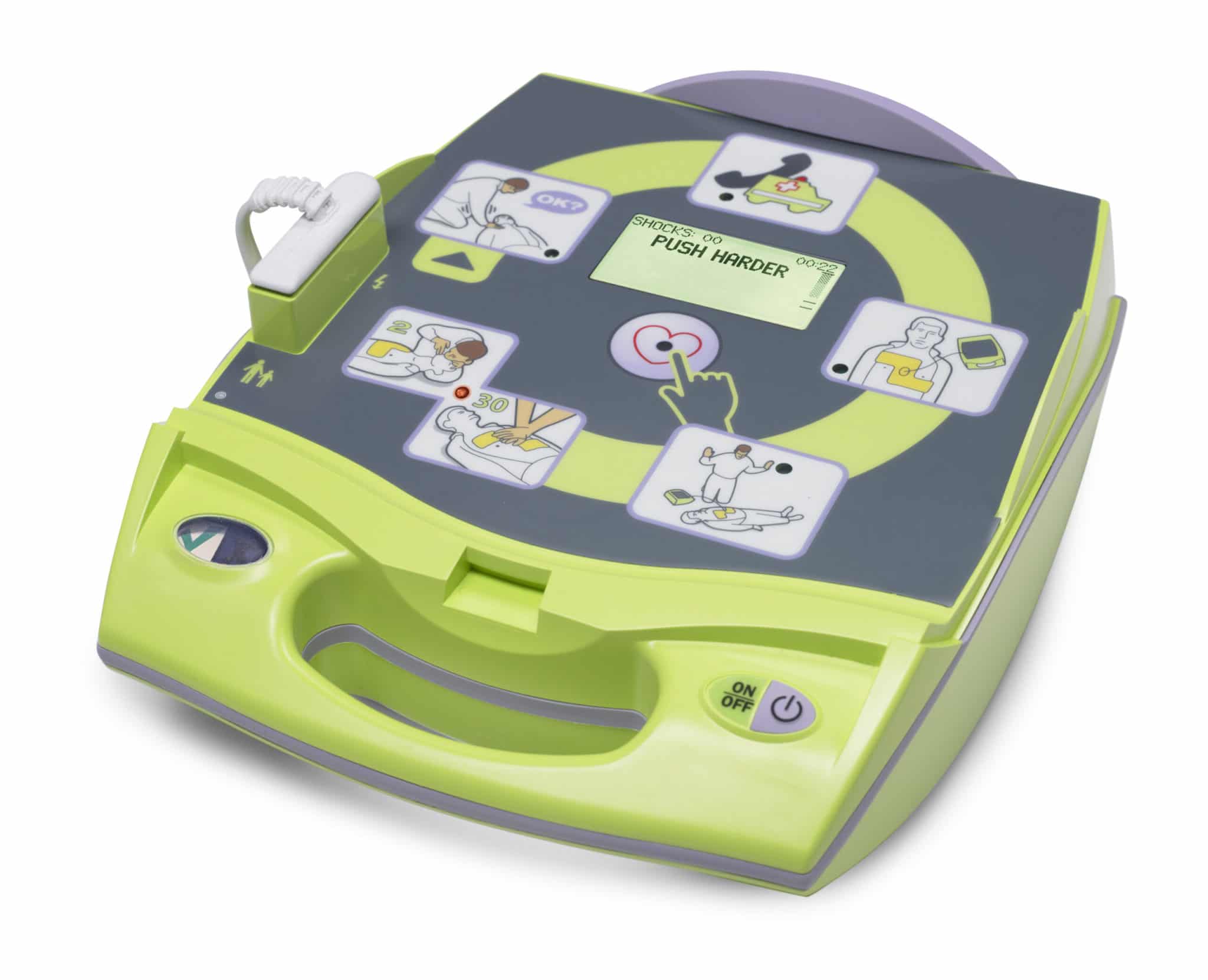

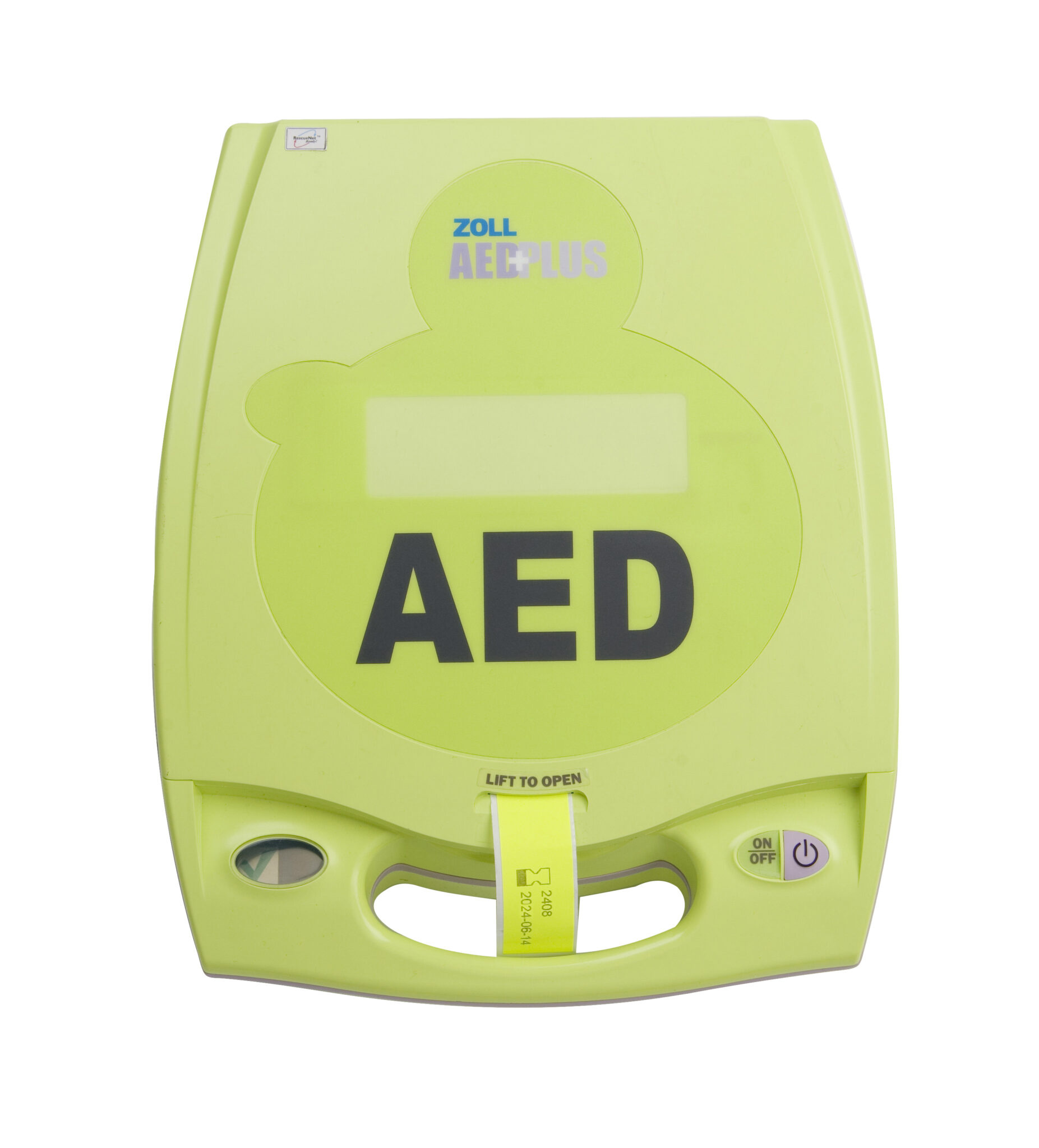

ZOLL AED Plus Defibrillator with Real CPR Help® – Professional AED Package
The ZOLL AED Plus is the only AED that provides real-time CPR feedback for compression depth and rate, making it ideal for professional responders and workplaces requiring advanced life support capabilities. Features 7-year warranty, 5-year battery life, and unique CPR coaching technology.
Model Options: Semi-Automatic & Fully Automatic
Key Feature: Real CPR Help® with depth/rate feedback
Price Range: $1,695 – $1,995 (complete packages available)
Best For: Schools, offices, gyms, emergency services
ZOLL AED Plus Models & Configurations
Semi-Automatic ZOLL AED Plus
Manual Shock Control: The semi-automatic model provides complete user control over shock delivery. After analyzing the heart rhythm, the device advises when a shock is needed, but the operator must press the shock button to deliver therapy.
Ideal Applications:
- Professional responders who want control over timing
- Training environments where instructors demonstrate proper technique
- Healthcare settings requiring precise shock coordination
- Emergency services needing operational flexibility
Fully Automatic ZOLL AED Plus
Automatic Shock Delivery: The fully automatic model delivers shocks automatically after providing clear warnings and ensuring the area is clear. No manual shock button activation required.
Ideal Applications:
- Public access locations with untrained users
- Workplace programs with minimal AED training
- Schools and community centers with lay responders
- High-stress environments where automatic operation reduces user burden
Real CPR Help® Technology: Revolutionary Feedback System

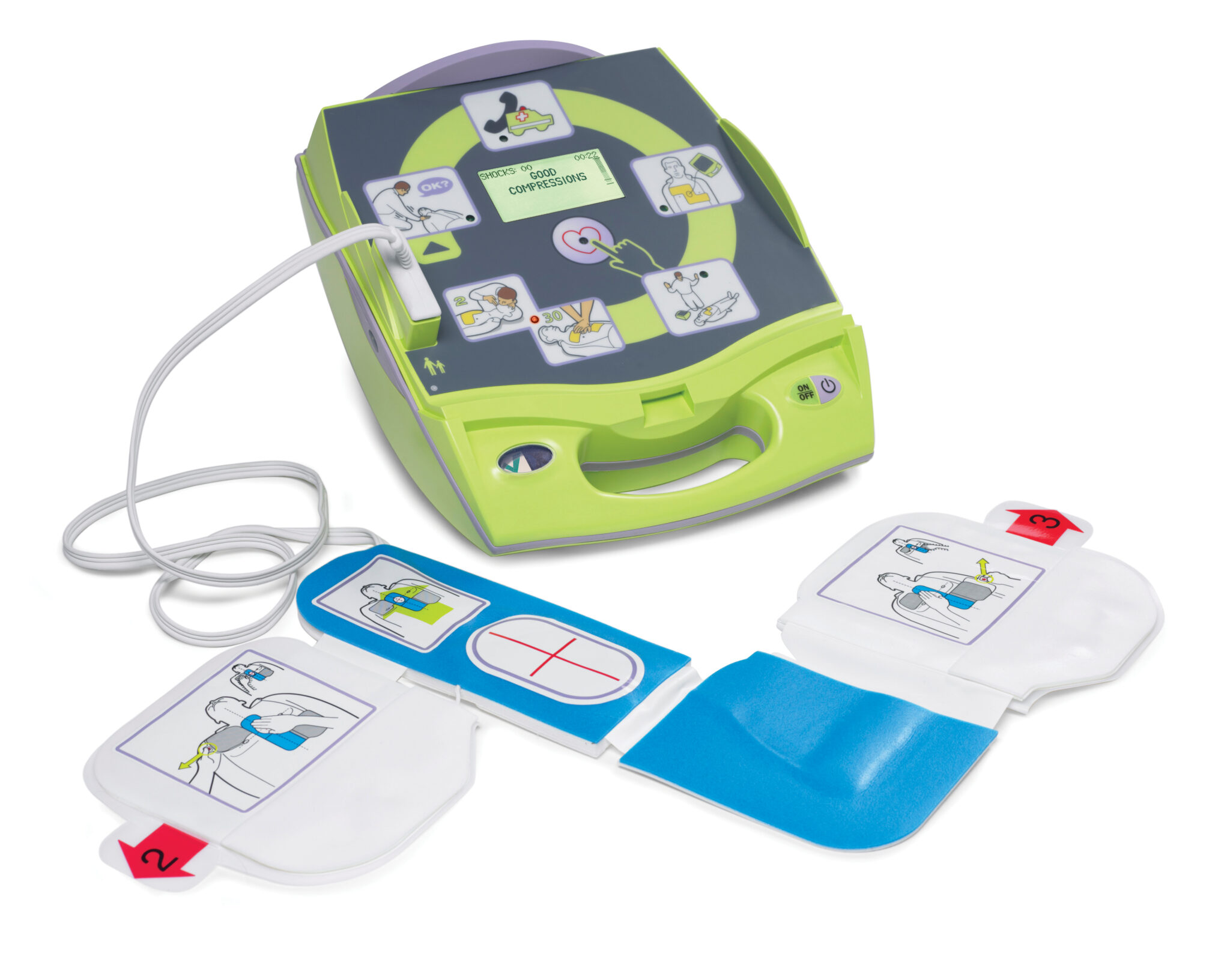

CPR-D-padz™ Advanced Electrode System
Compression Depth Monitoring: The ZOLL AED Plus is the only AED that measures actual compression depth through proprietary CPR-D-padz technology, providing real-time audio feedback to improve CPR effectiveness.
Real-Time Voice Coaching:
- “Push Harder” – when compressions are too shallow (less than 2 inches)
- “Good Compressions” – when depth and rate are optimal
- “Release Completely” – when recoil is incomplete
- Adaptive Metronome – helps maintain 100-120 compressions per minute
CPR Performance Analytics

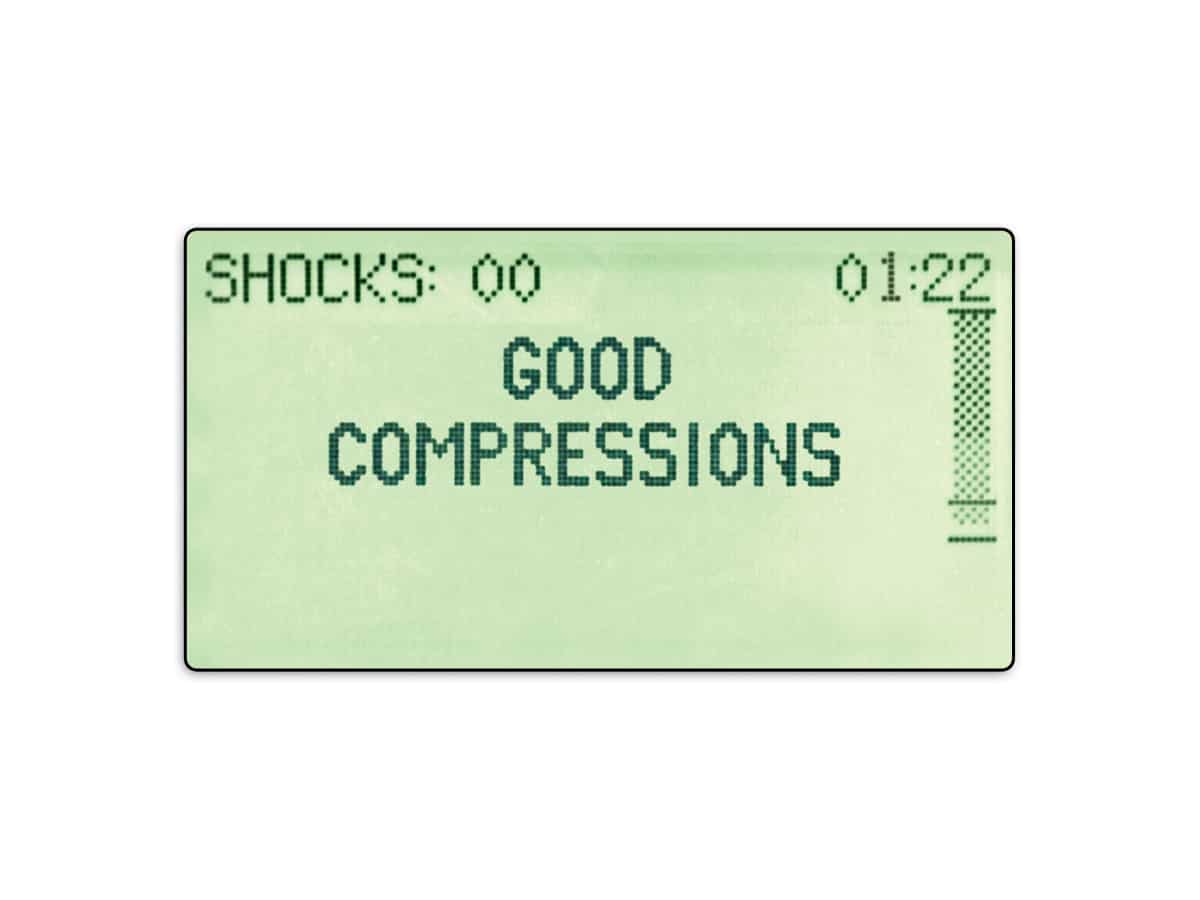

Visual Display Feedback: The LCD screen shows compression depth in real-time with bar graph indicators, allowing rescuers to see their CPR performance while receiving audio coaching.
Why Depth Matters: Studies show that adequate compression depth (at least 2 inches for adults) is critical for survival. The ZOLL AED Plus ensures rescuers consistently achieve the proper depth.
Rate Guidance: The adaptive metronome adjusts to optimal compression rate (100-120 per minute), helping maintain effective circulation during cardiac arrest.
ZOLL AED Plus Specifications & Features
Technical Specifications
Power & Performance:
- Battery Type: 12V Lithium (non-rechargeable)
- Battery Life: 5 years standby / 440 minutes continuous
- Shock Energy: Biphasic, 120-200 joules
- Charge Time: 8 seconds to 200 joules
- Analysis Time: 9 seconds maximum
Environmental Durability:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity Resistance: 5% to 95% relative humidity
- Water Resistance: IP55 rated for dust and water protection
- Drop Testing: Survives 1.5-meter drops per IEC standards
Advanced User Interface
Clear Audio/Visual Guidance:
- Large LCD display with text prompts and CPR bar graph
- Loud, clear voice prompts (95 dB at 1 meter)
- Bright LED status indicators for ready/maintenance states
- Intuitive button layout for emergency operation
Multi-Language Support: Available in multiple languages including English, Spanish, French, and others to serve diverse communities.
CPR-D-padz™ Electrode System
Superior Electrode Design
5-Year Shelf Life: ZOLL CPR-D-padz electrodes offer industry-leading 5-year shelf life, reducing replacement frequency and maintenance costs compared to 2-year standard pads.
CPR Hand Placement Guide: Electrodes feature hand placement graphics showing optimal hand position for chest compressions, helping rescuers maintain proper technique.
Easy Application:
- Single-use, pre-connected design eliminates connection errors
- Clear anatomical placement graphics on each pad
- Strong adhesive gel ensures reliable skin contact
- Large electrode surface area optimizes defibrillation effectiveness
Pediatric Capability
Pedi-padz II for Children: Optional pediatric electrodes provide age-appropriate therapy for children under 8 years old or weighing less than 55 pounds.
Automatic Algorithm Adjustment: When Pedi-padz II are connected, the AED Plus automatically:
- Reduces shock energy to pediatric-appropriate levels
- Adjusts voice prompts for child-specific rescue techniques
- Modifies CPR coaching for smaller chest cavity anatomy
How to Change the ZOLL AED Plus Batteries
Alternate ZOLL AED Plus Part Numbers
20100000102011010, 21400010102011010, 20600000101011010, 2070000010101101, 20100000101011010, 20600000101011010, 2070000010101101, 21400010101011010, 2140001010101101, 2140001010101101, 8000-004007-01, 20100700702011010
