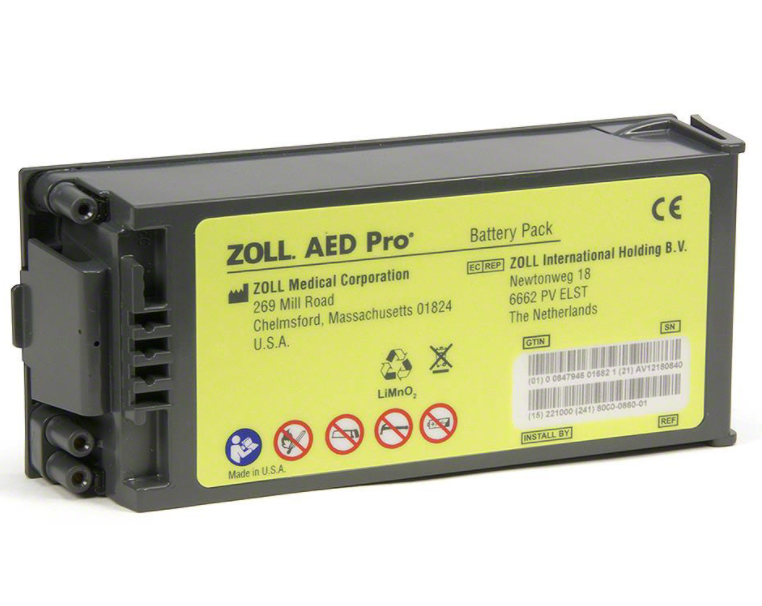

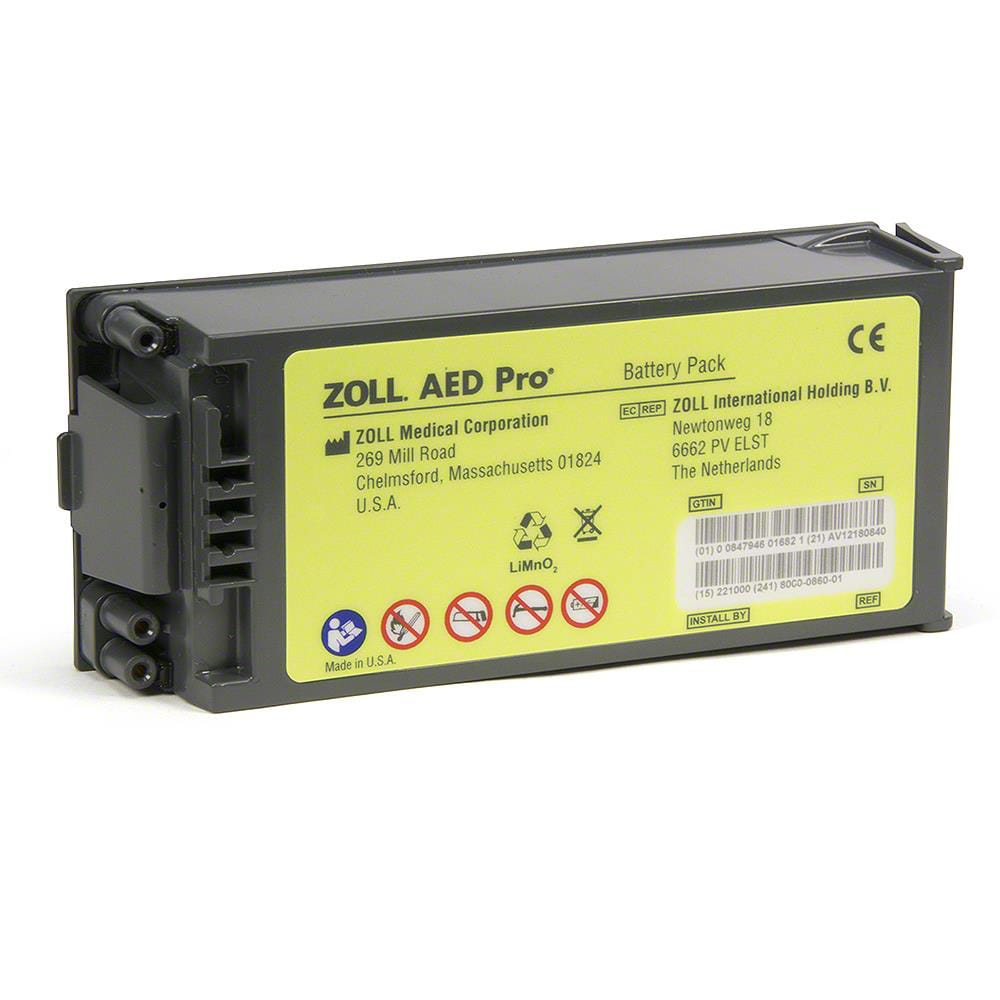

ZOLL® AED Pro®Non-Rechargeable Lithium Battery

ZOLL AED Pro Battery Overview

When the unit detects a low energy condition in the ZOLL AED Pro Battery, it issues the voice and text prompt CHANGE BATTERY once every minute. Depending on the age and condition of the battery, the remaining operating time of the unit might be extremely limited. The warning message continues until the device shuts down.

How To Care For Battery

Keep a fully charged spare battery pack with the device at all times. When the unit displays the message CHANGE BATTERY, immediately replace the battery pack
with a fully charged one. Regular use of a partially charged battery pack without fully recharging it between uses might permanently reduce the battery’s capacity and result in early failure. Regularly test rechargeable battery packs. A rechargeable battery pack that does not pass its test could fail without warning. Do not disassemble a battery pack or dispose of it in fire. Do not try to recharge a non-rechargeable battery pack. If mistreated, a battery pack might explode. Dispose of battery packs in accordance with federal, state, and local regulations. Battery packs should be shipped to a reclamation facility for the recovery of metal and plastic compounds as the proper method of waste management.

Full Manual

Battery Pack Specifications

Rechargeable Sealed Lead Acid
Type Sealed lead acid
Weight 1 kg
2.2 lb.
Nominal voltage 10 V

Recharge time 4 hours or less with:
ZOLL Base PowerCharger 4×4
ZOLL Base PowerCharger 1×1
ZOLL SurePower Charger Station
Operating time For a new, fully charged battery pack at 20°C:
170 defibrillator discharges at maximum energy (200 joules) or
6 hours of continuous monitoring.
The CHANGE BATTERY warning appears after 115 maximum-energy
discharges.
Standby life 3 months before recharge or retest
Disposable Sealed Lithium Manganese Dioxide
Type Disposable sealed lithium manganese dioxide
Weight 0.4 kg
0.9 lb.
Nominal voltage 12 V
Operating time For a new, fully charged battery pack at 20°C:
300 defibrillator discharges at maximum energy (200 joules) or 15
hours of continuous ECG monitoring.
The CHANGE BATTERY warning appears after 200 maximum energy discharges.
Standby life 5 years
Rechargeable Lithium Ion (SurePower Battery Pack)
Type Rechargeable lithium-ion
Weight 0.77 kg
1.7 lb.
Nominal voltage 10.8 V
Recharge time 4 hours or less with SurePower Charger Station
Operating time For a new, fully charged battery pack at 20°C:
400 defibrillator discharges at maximum energy (200 joules) or 19
hours of continuous ECG monitoring.
The CHANGE BATTERY warning appears after 300 maximum energy discharges.
Standby life 3 months before recharge or retest
