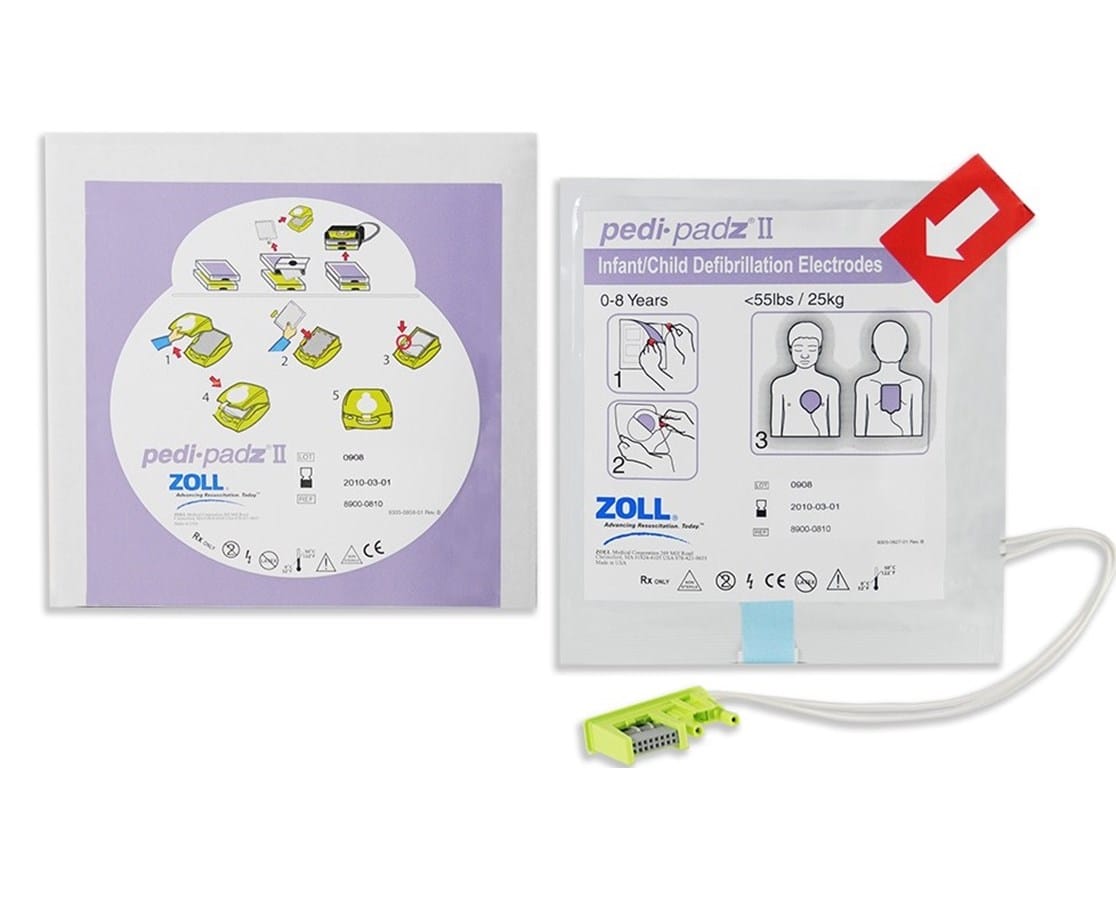

ZOLL Pedi Padz II

ZOLL Pedi Padz II

$108.00

What are ZOLL® Pedi-Padz II? These infant/child electrode pads are pediatric pads compatible with the ZOLL AED Plus and AED Pro devices. The Pedi-Padz II, also known as pedi pads are for use on children under the age of 8 or under 55 pounds.

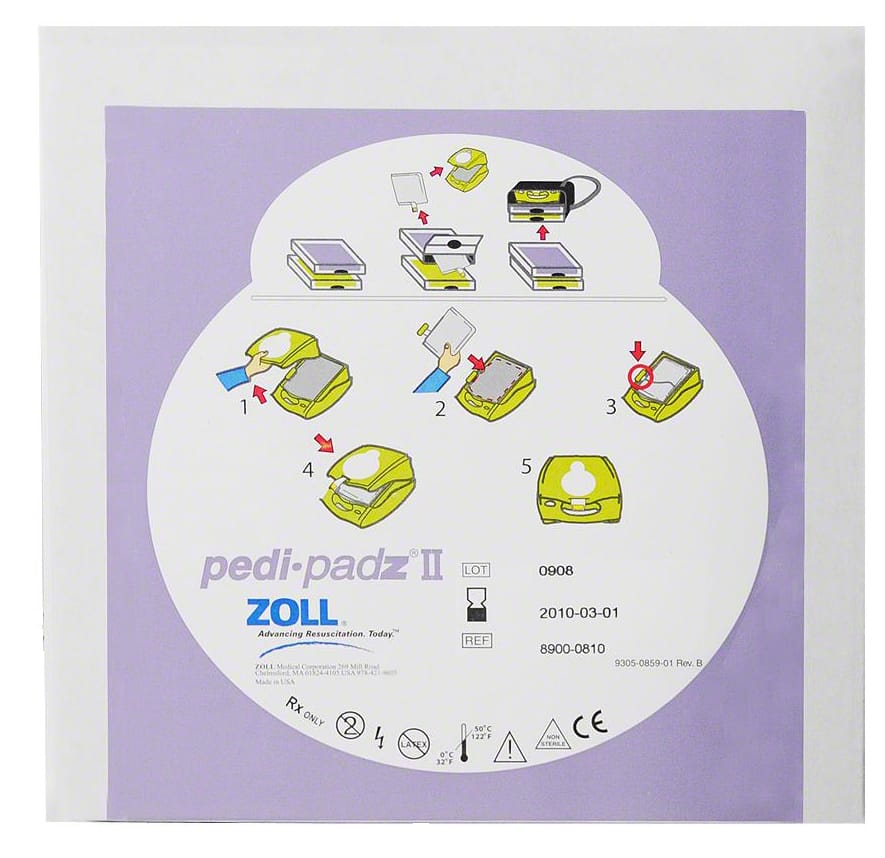

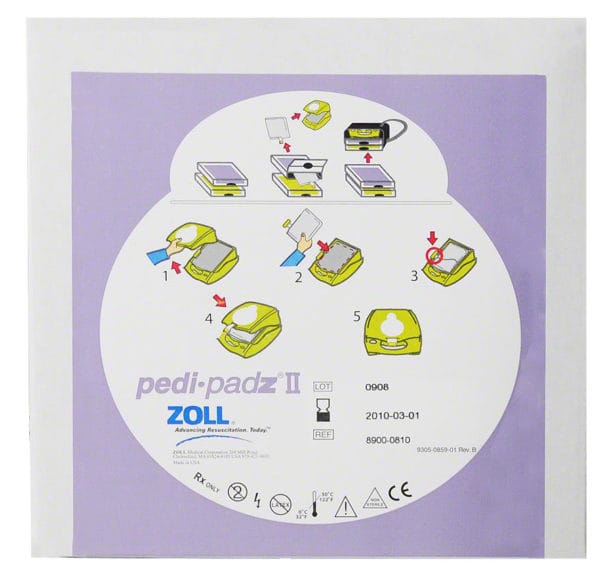

Easy-to-follow diagrams on the package facilitate proper pad placement on the victim’s chest. When the pads are connected to the ZOLL device, the AED machine automatically detects the status of the child’s heartbeat. ZOLL technology allows the device to adjust the shock administered to the child to ensure proper and effective treatment is delivered for each patient.

  • These pads come with a 2-year manufacturer warranty.
  • FREE shipping

Frequently Purchased With

SKU: 8900-0810-01 Categories: ,

ZOLL AED Plus Pediatric Pads

ZOLL Pedi-padz II electrodes are designed for use on children up to eight years of age or weighing less than 55 lbs. Easy-to-follow diagrams on the package facilitate proper pad placement. When Pedi-Padz II are used with compatible ZOLL defibrillators, the device provides voice and text prompts to tell rescuers that Pedi-padz® II are connected, ensuring that the proper defibrillator electrodes are being used.

These pads contain separate and specific algorithms designed for children are used to analyze the victim’s heart rhythm, and the ZOLL defibrillator automatically reduces energy to provide pediatric-specific therapy.

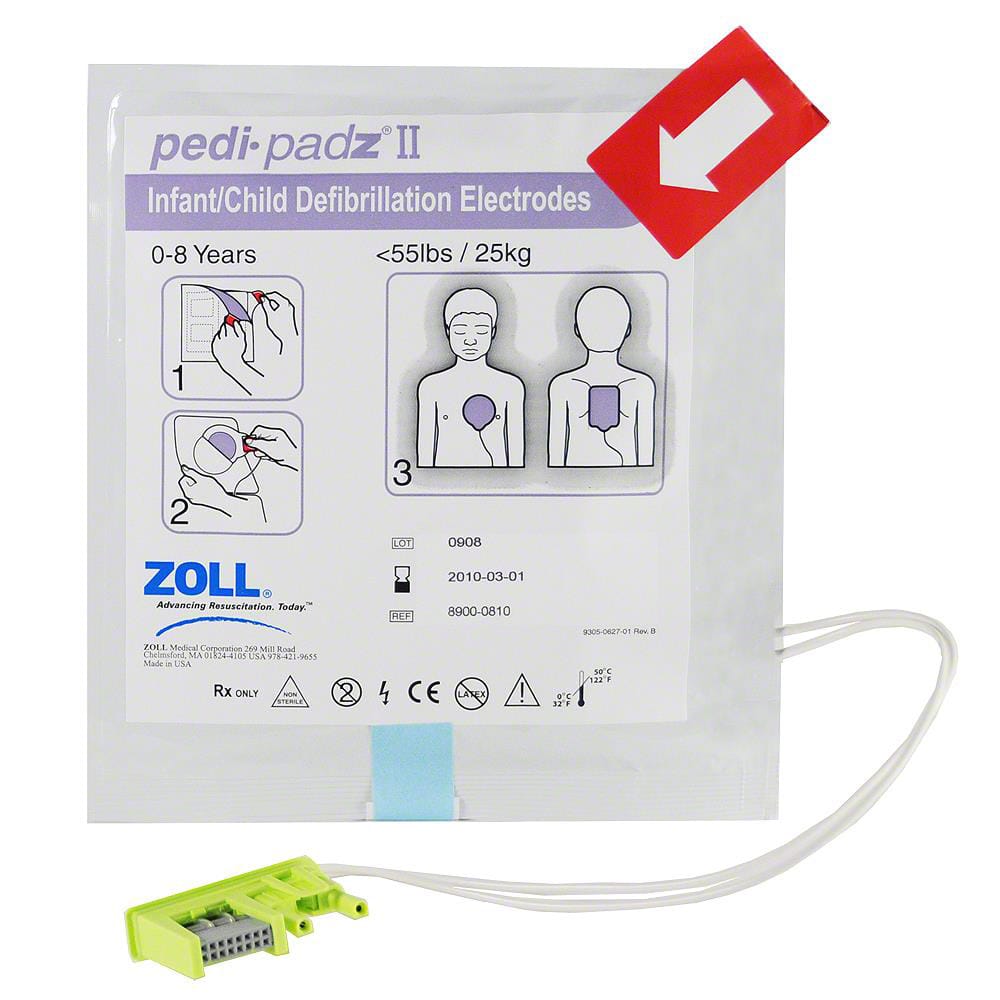

The Pedi-padz II electrodes are designed especially for use with the AED Plus, and are also compatible with professional defibrillators, allowing continuity of care. The AED Plus does not rely on a resistor or other hardware in the wires to reduce delivered energy. Anatomical diagrams on the package facilitate proper pad placement.

Pedi-Padz II are compatible with the following ZOLL AED Devices: AED Pro, AED Plus

Indications for Use
Patient Age: 0-8 Years
Patient Weight: Under 55 lbs/25 kg

Intelligent Pediatric Capability
Devices: AED Plus and AED Pro
Device Energy Levels: 50, 70, 85 Joules
Patient Analysis: Analyzes based on pediatric –
specific algorithm

Electrode Specifications
Shelf Life: 24 months
Backing Material: Closed Cell Polyethylene
Conductive Gel: Hydrogel
Conductive Element: Tin
Connection Method: Pre-attached
Packaging: Paper/Polyfoil laminate
Impedance Class: Low
Length, Lead Wires: 34.0 inches/86.4 cm

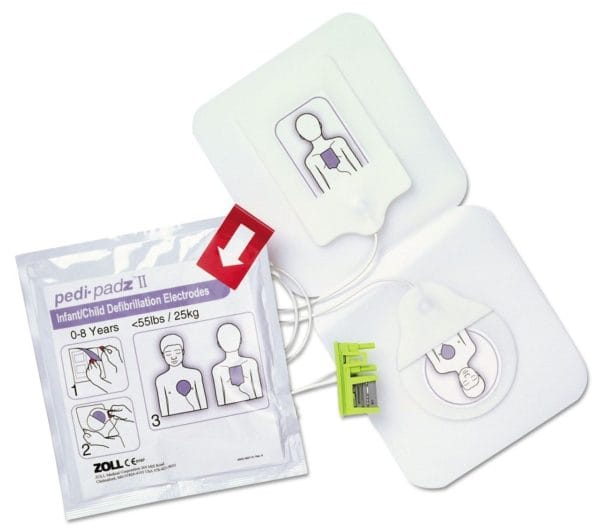

Front Electrode
Shape: Round
Diameter, Total: 3.7 inches/9.4 cm
Area, Total: 10.75 square inches/69.4 sq cm
Diameter, Conductive Gel: 2.85 inches/7.24 cm
Area, Conductive Gel: 6.37 square inches/41.1 sq cm

Back Electrode
Shape: Rectangular
Length, Total: 5.43 inches/13.8 cm
Width, Total: 3.5 inches/8.9 cm
Area, Total: 19.0 square inches/122.6 sq cm
Length, Conductive Gel: 3.58 inches/9.1 cm
Width, Conductive Gel: 2.18 inches/5.5 cm
Area, Conductive Gel: 7.81 square inches/50.3 sq cm
