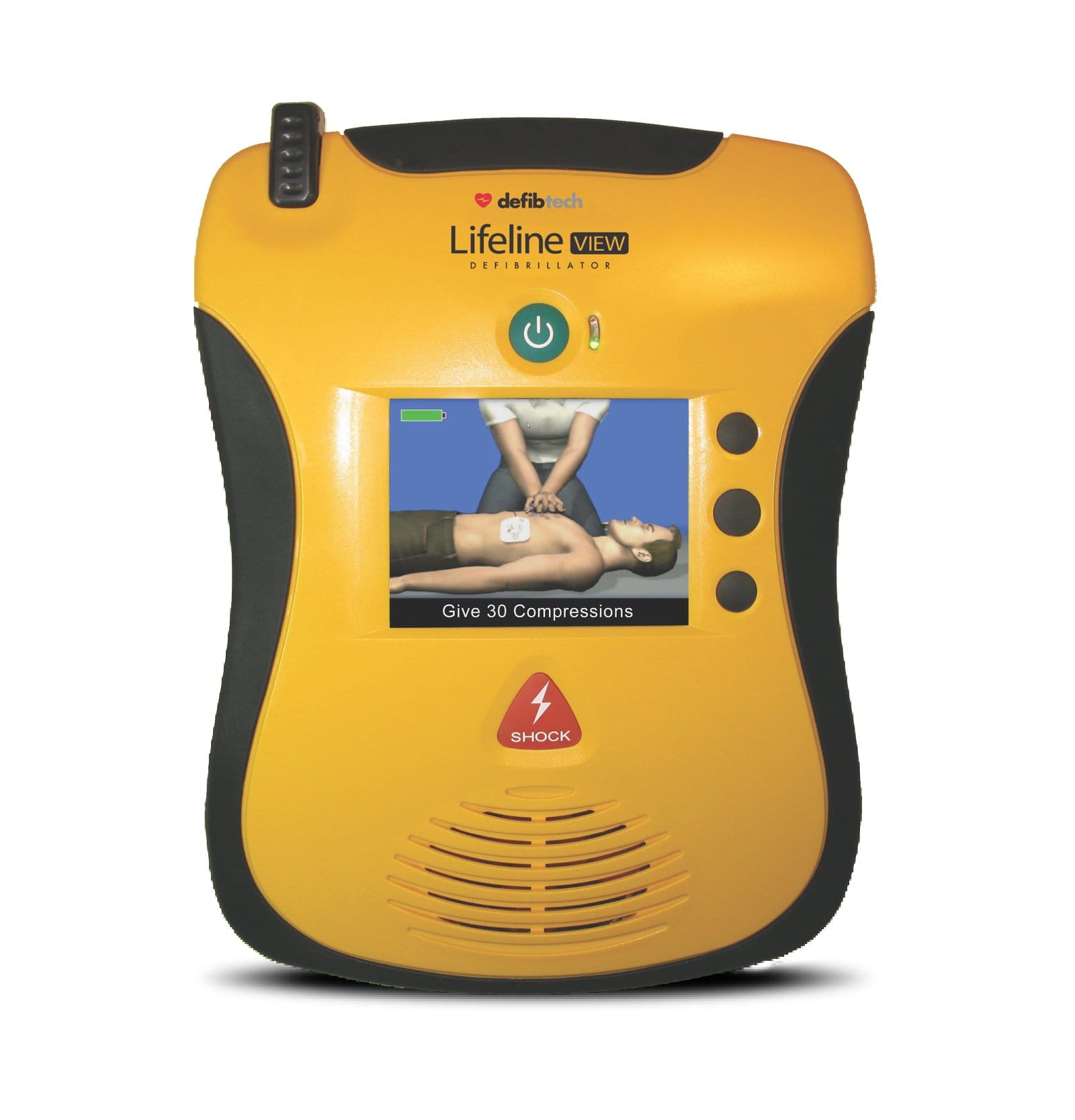

Defibtech View AED front view with the full-color video screen showing an animated CPR compression demonstration

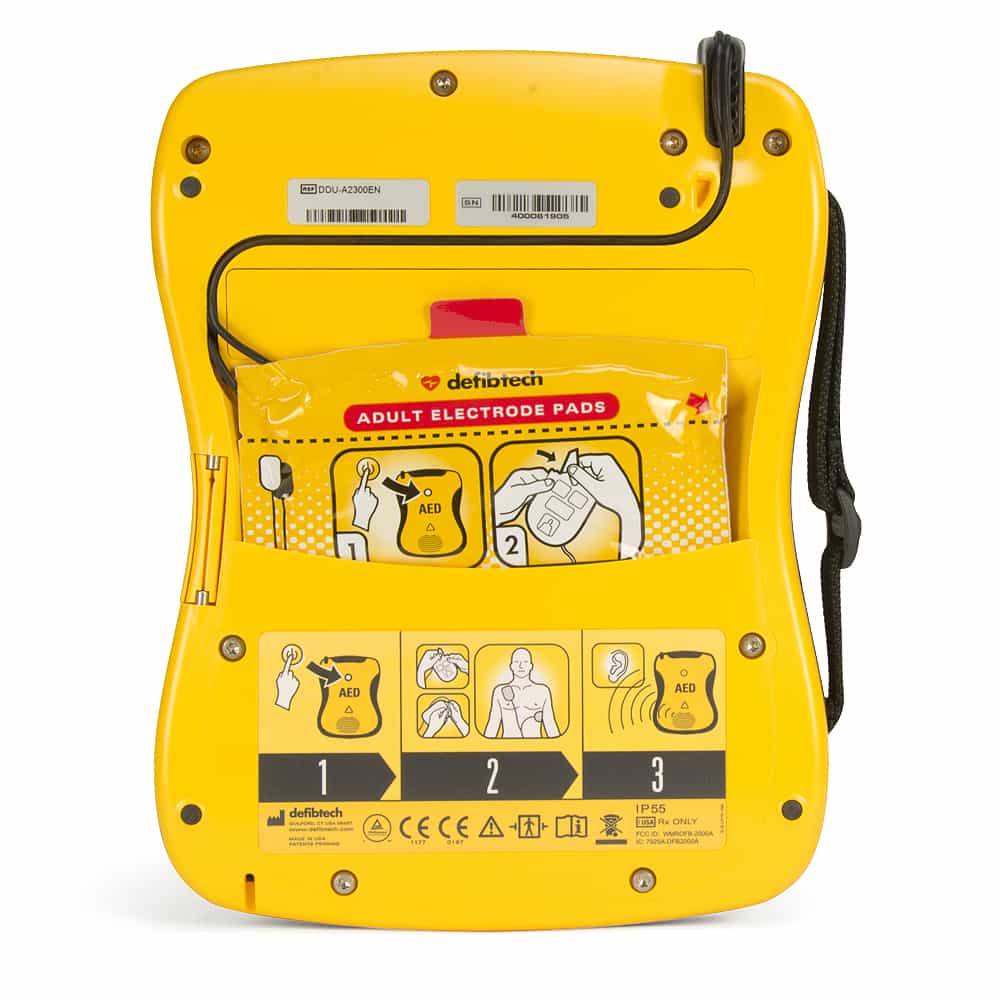

Defibtech View AED rear view with the adult electrode pad pack and carry strap

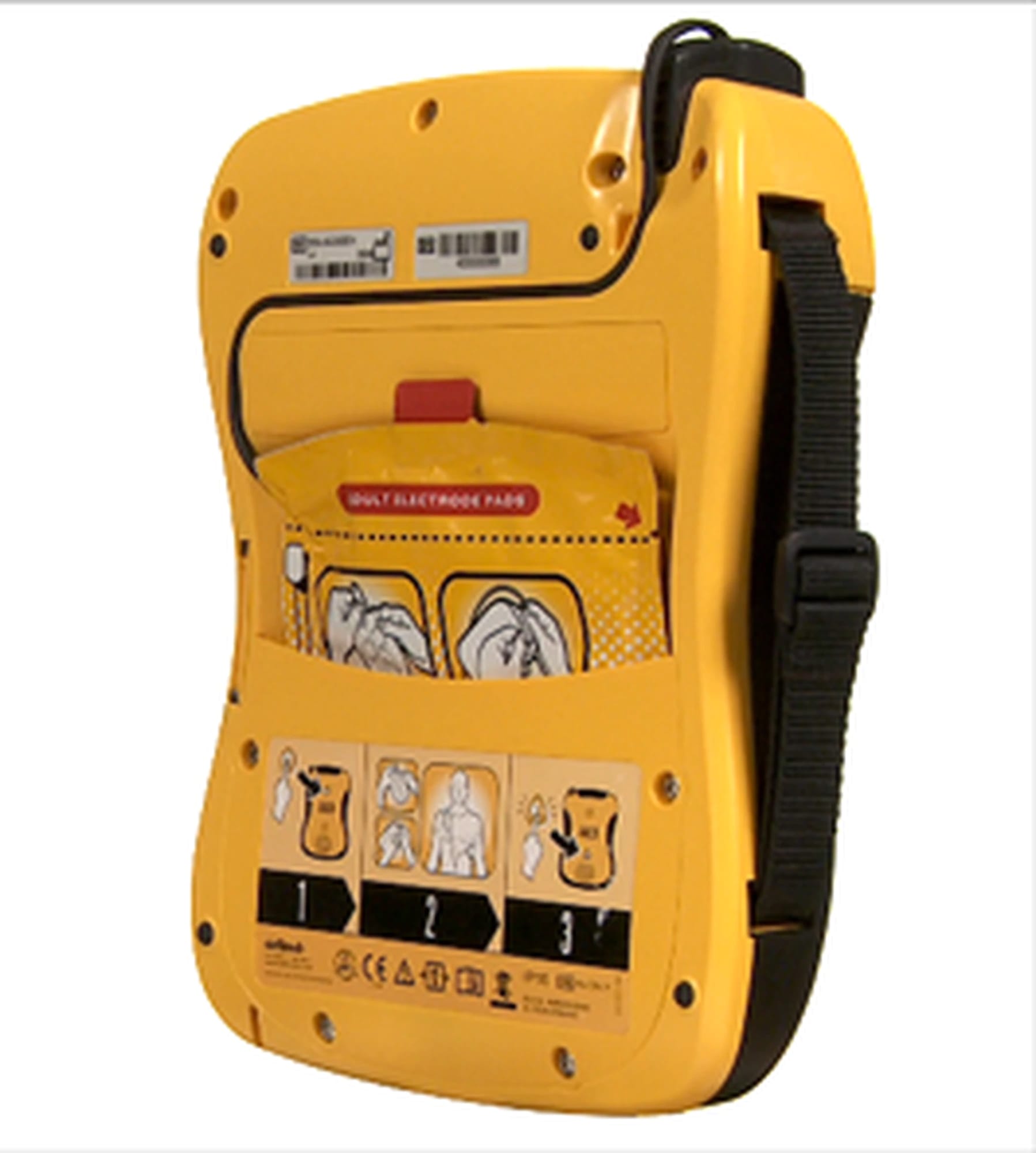

Defibtech View AED angled rear view showing the electrode pad pack

Automated External Defibrillators (AED)DefibtechManufacturers

Defibtech View AED

Name: Defibtech View AED
Brand: AED Brands
SKU: ZSH-DCF-A2310-N
Price: 2086.00 USD
Availability: InStock

The Defibtech View AED features a full-color display, providing a comprehensive visual aid with step-by-step instructions and voice prompts during a rescue, including CPR compression rate. It is currently the only device on the market with this feature. Furthermore, the AED offers an ECG option that enables professional responders to switch to a display mode that shows the patient’s ECG. This feature provides EMTs with an additional layer of information that can significantly improve the outcome of a rescue. By having a complete overview of the patient’s condition, the EMT can make more informed decisions and provide targeted treatment, ultimately increasing the likelihood of a successful outcome.

4-Year Battery Standby Life

8-Year Manufacturer Warranty

FDA Approved

$2,086.00

Quantity:

ZSH-DCF-A2310-N

Defibtech View AED

$2,086.00

Top Features

The only AED with a high-resolution color LCD showing full-motion video rescue guidance, on-screen text prompts, and video CPR coaching.

Energy Delivery

Delivers an impedance-compensated biphasic truncated exponential shock — 150 J for adults, 50 J for children and infants (nominal into 50 ohms). Charges in under 4 seconds once a shock is advised.

CPR Feedback

Coaches CPR with full-motion video on the color screen alongside voice guidance, with on-demand video help available at any point in the rescue.

Pediatric Mode

Switch to child/infant pads (DDP-2002) for patients under 8 years old or under 55 lbs (25 kg); the unit then delivers 50 J instead of 150 J.

Battery & Pad Life

The DBP-2003 battery carries a 4-year standby life and supports 125 shocks or 8 hours of continuous operation. Adult DDP-2001 pads stay pre-connected and ready.

Weight & Dimensions

Weighs under 3 lbs (1.4 kg) with the battery installed, and measures 7.3 x 9.5 x 2.3 in (18.5 x 24 x 5.8 cm).

Warranty

8-Year Manufacturer Warranty.

How Fast Does the Defibtech Lifeline AED Deliver a Shock?

Four seconds or less, measured from the moment the device advises a shock. The Lifeline delivers an impedance-compensated biphasic truncated exponential shock at 150 J for adults and 50 J for children and infants, nominal into 50 ohms. Operation is two buttons and voice prompts, with a built-in CPR metronome pacing compressions. Pediatric rescue means switching to DDP-200P child/infant pads for patients under 8 years or under 55 lbs. Battery is the real decision at purchase: the standard DBP-1400 carries a 5-year standby life with 125 shocks or 8 hours of continuous operation, and a long-life 7-year pack is also offered, which lines replacement cycles up differently across a fleet. It is rated IP54 to IEC 60529, sealed against dust and splashing water with the battery installed, and weighs 4.2 lbs. Self-tests run daily, weekly, monthly, and quarterly, with a pads test every day. Defibtech backs it with an 8-year warranty.
