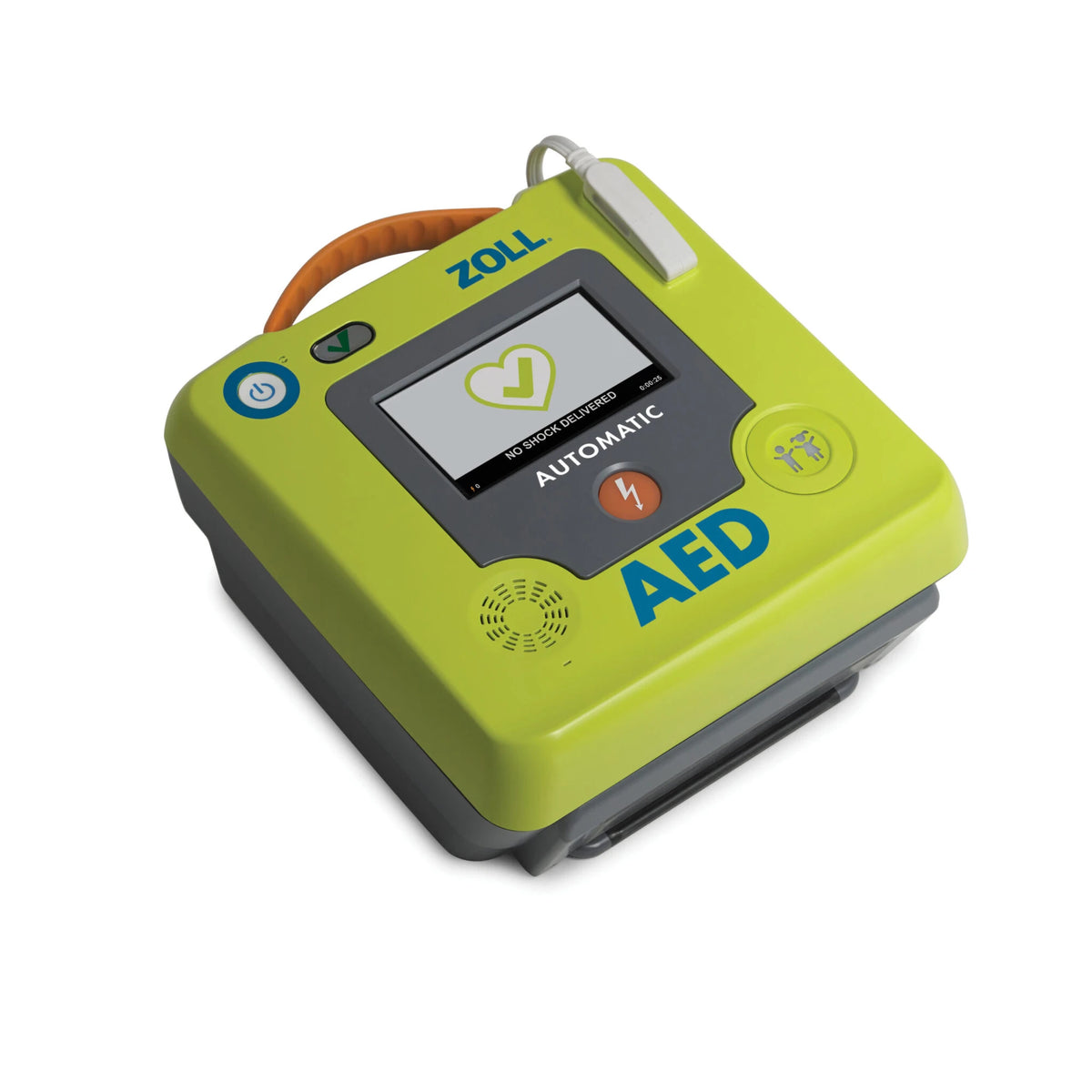

ZOLL AED 3 top-down angled view with the screen showing No Shock Delivered in Automatic mode

ZOLL AED 3 with the round CPR Uni-padz universal electrode pad laid out in front

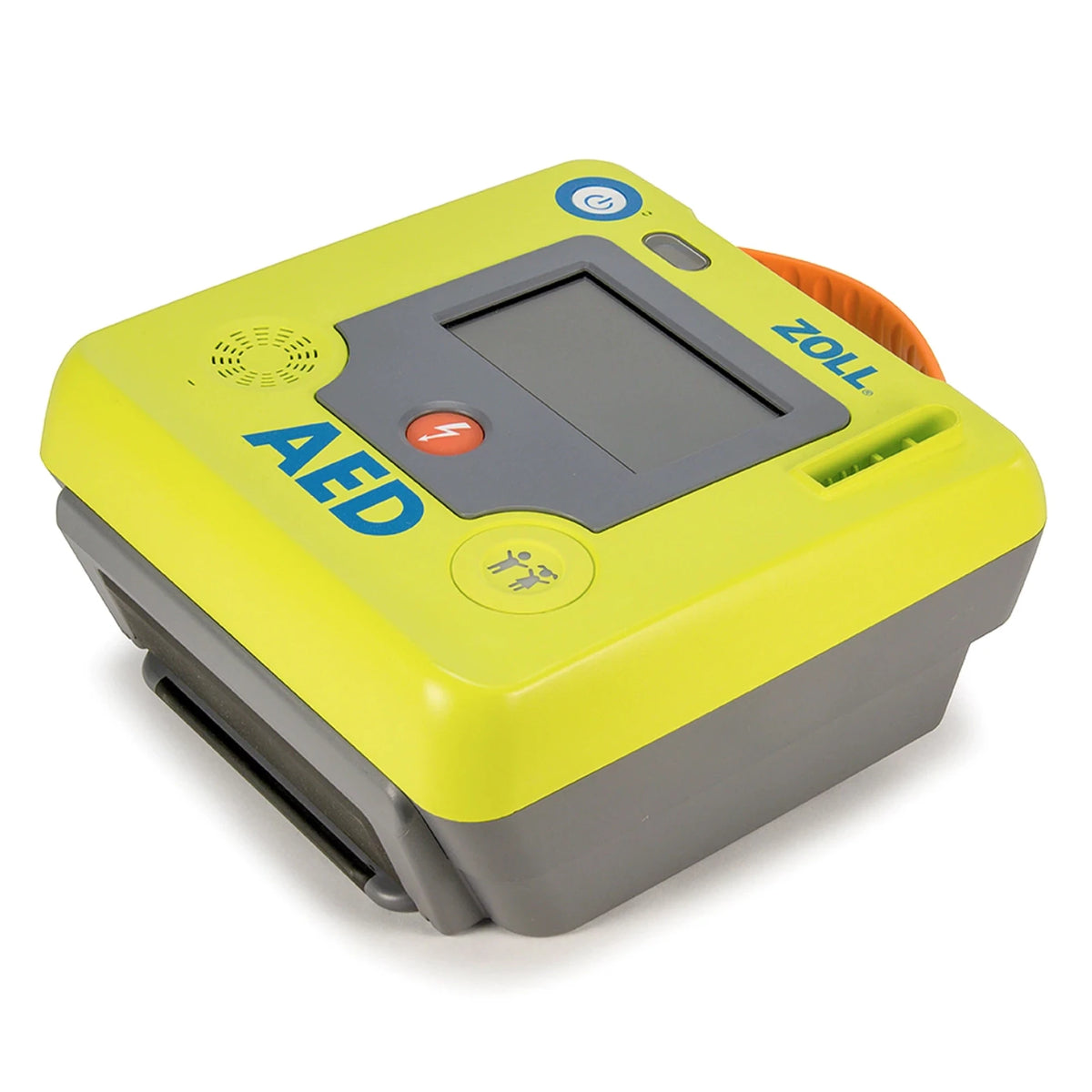

ZOLL AED 3 angled top-down view with a blank display screen

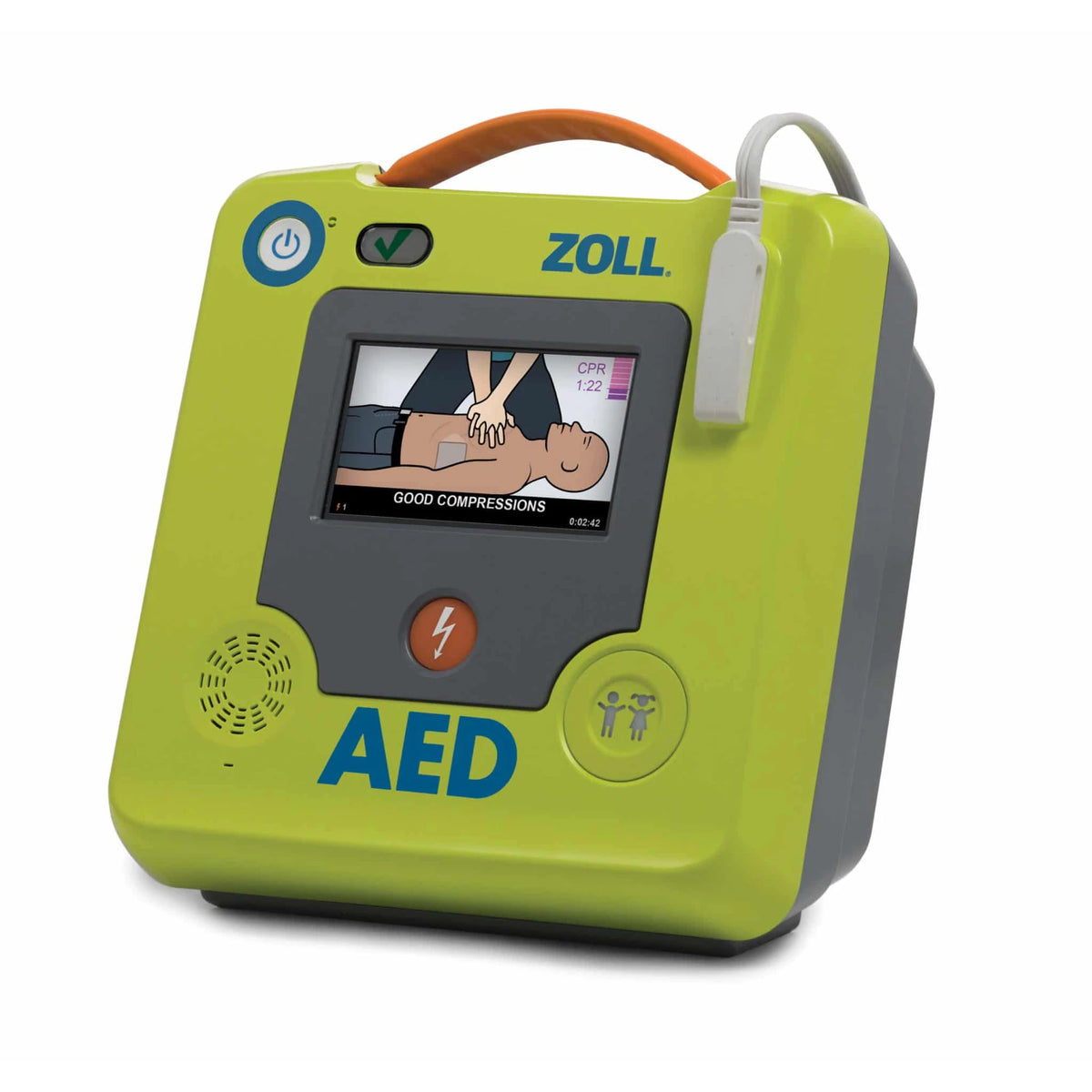

ZOLL AED 3 angled 3/4 view with the electrode cable connector and Good Compressions CPR feedback on screen

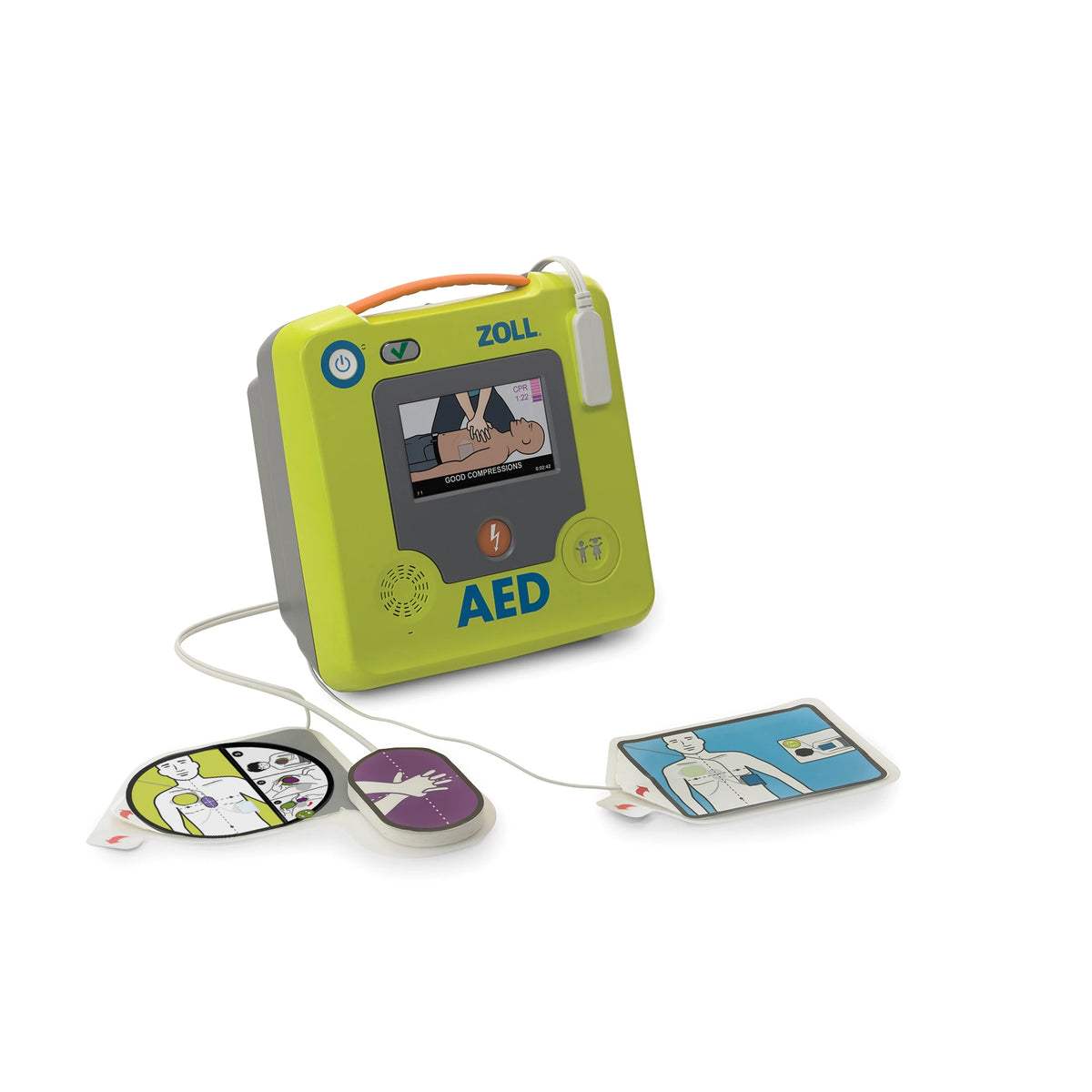

ZOLL AED 3 with the CPR Uni-padz electrode pad laid out, showing live CPR coaching on screen

Automated External Defibrillators (AED)ManufacturersZOLL

ZOLL AED 3

Discover the ZOLL AED 3 – a cutting-edge lifesaving device that sets new standards in automated external defibrillation. With its user-friendly design, the ZOLL AED 3 offers unparalleled ease of use and rapid response capabilities. Equipped with ZOLL’s Real CPR

Help® technology, this AED delivers real-time feedback on the depth and rate of chest compressions to optimize CPR performance. With enhanced functionality, a 5-year battery life, and an IP55 rating for dust and water resistance, the ZOLL AED 3 is the ultimate choice for dependable emergency response in any environment.

5-Year Battery and CPR Uni-padz

8-Year Manufacturer Warranty

FDA Approved

$2,399.00

Choose Mode:

Fully Auto (No Shock Button)Semi-Auto (Has Shock Button)

Quantity:

ZSH-851100110201-N

ZOLL AED 3

$2,399.00

Top Features

Enhanced Real CPR Help on a full-color touchscreen, with a CPR cycle timer and RapidShock analysis that can deliver a shock in as little as 5 seconds.

Energy Delivery

ZOLL Rectilinear Biphasic waveform with factory-preprogrammed energy — 120 J, 150 J and 200 J for adults; 50 J, 70 J and 85 J for children. Charges in under 10 seconds with a new battery.

CPR Feedback

Real CPR Help measures compression depth from 0.75 in to 4 in (1.9 to 10.2 cm) and shows it live on a color bar gauge alongside a CPR cycle timer.

Pediatric Mode

CPR Uni-padz universal electrodes treat both adults and children — activate child mode rather than swapping pads. Pediatric energy is 50 J, 70 J and 85 J.

Battery & Pad Life

The smart battery holds a 5-year standby life with weekly self-tests, or 140 shocks at 200 J / 6 hours of continuous monitoring when new. CPR Uni-padz carry a 5-year shelf life.

Weight & Dimensions

Weighs 5.5 lbs (2.5 kg) with battery and measures 5.0 x 9.3 x 9.7 in (12.7 x 23.6 x 24.7 cm).

Warranty

8-Year Manufacturer Warranty.

Why the ZOLL AED 3 Uses One Pad Set for Adults and Children

CPR Uni-padz replace the two-inventory problem with a single electrode set that treats both adults and children. Instead of stocking Pedi-padz alongside adult pads at every site and tracking two expiration dates, you stock one part and activate child mode on the device, which drops energy to 50 J, 70 J, and 85 J. Across a multi-site program that is one fewer thing to get wrong at inspection. The AED 3 also shows Real CPR Help live on a color bar gauge, measuring depth from 0.75 in to 4 in, with a CPR cycle timer on the touchscreen. Adult energy is 120 J, 150 J, and 200 J, charging in under 10 seconds. Fully automatic units deliver the shock after a 3-second countdown, with a pre-shock pause under 8 seconds on a new battery. WiFi models report readiness and failed self-tests on their own. Battery and Uni-padz both carry 5 years. Rated IP55, 1-meter drop tested, 5.5 lbs, 8-year warranty.
