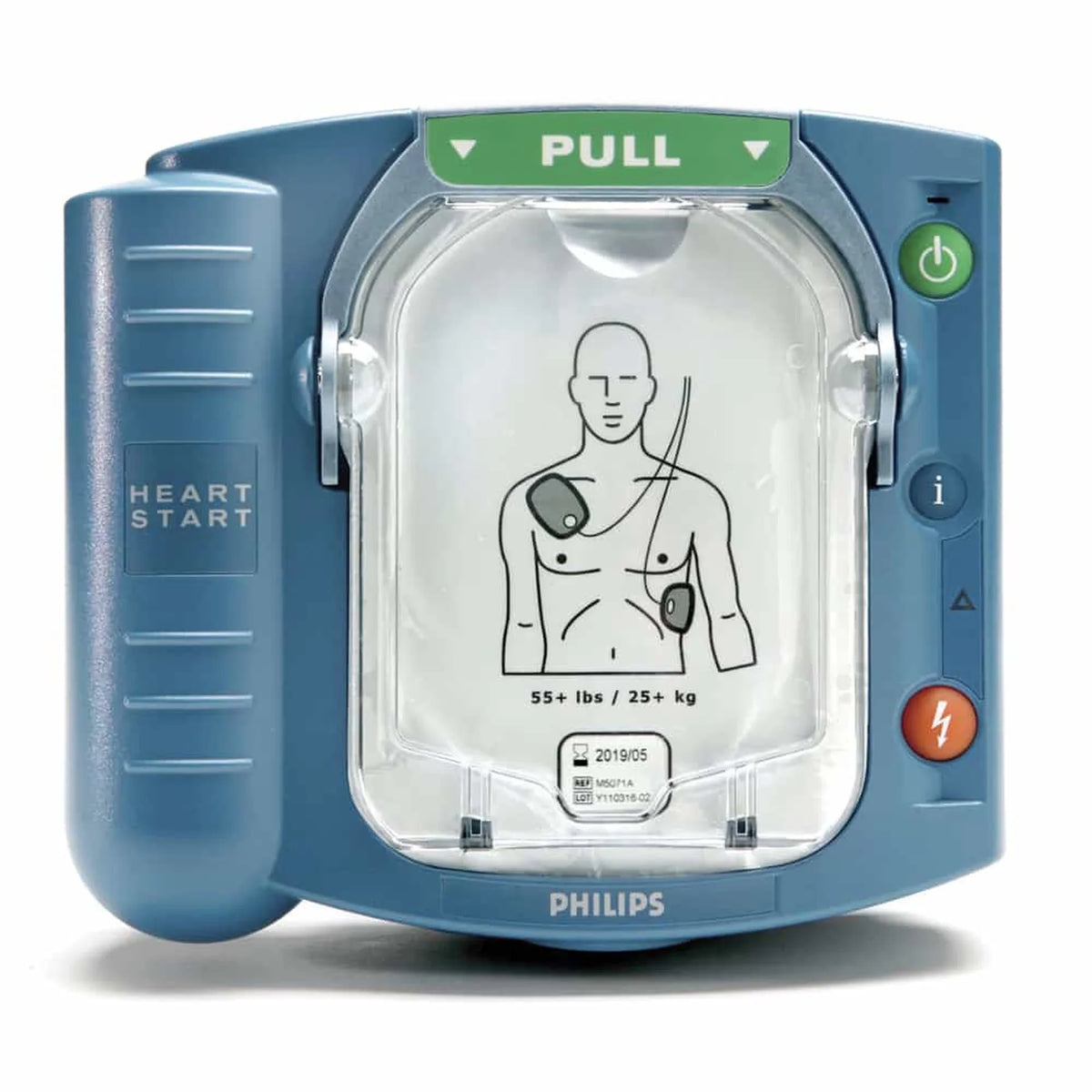

Philips HeartStart Home Defibrillator electrode pad placement diagram on the pad cartridge lid

Philips HeartStart OnSite AED slim carry case, closed, angled view

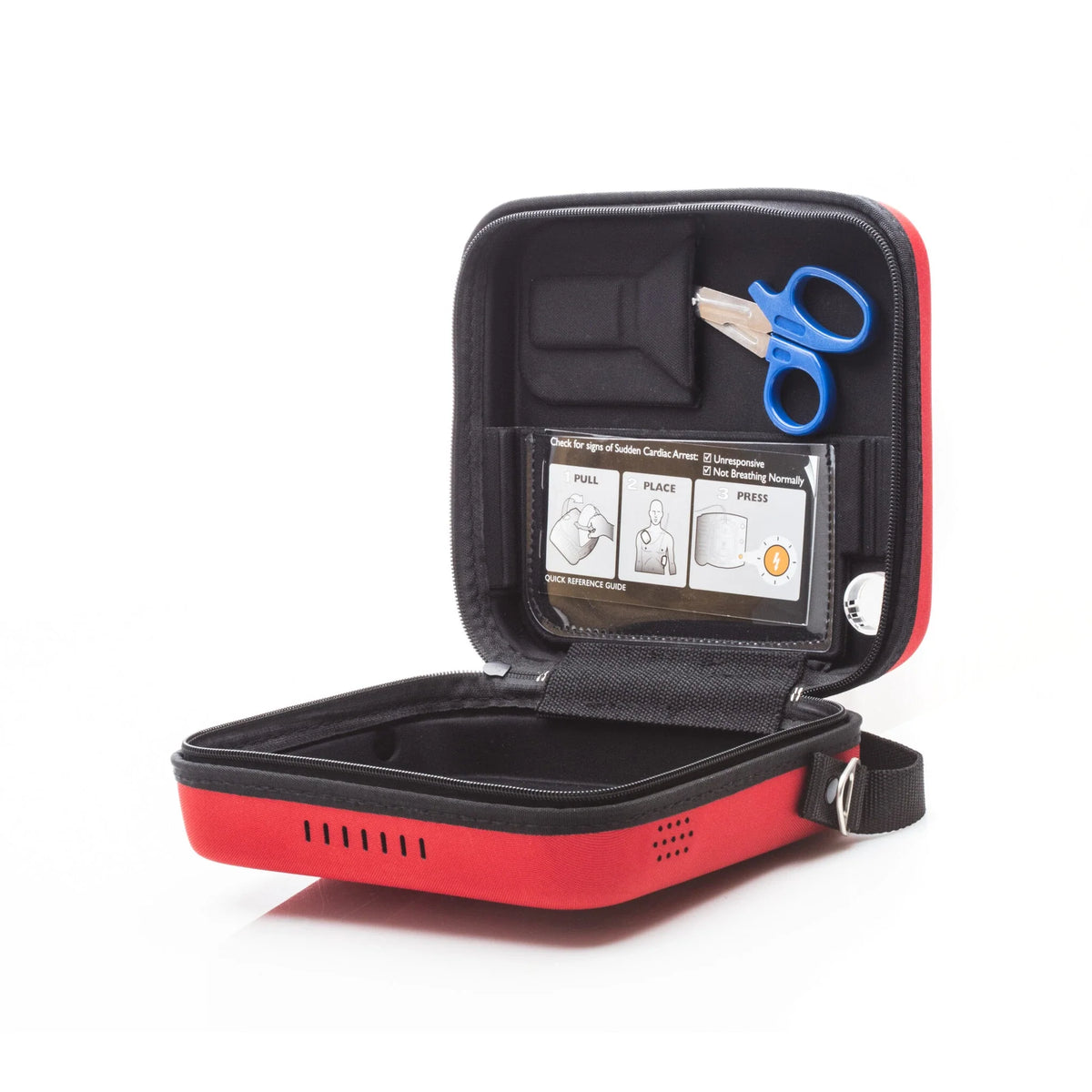

Philips HeartStart OnSite AED slim carry case open and empty, showing medical shears and quick reference pocket

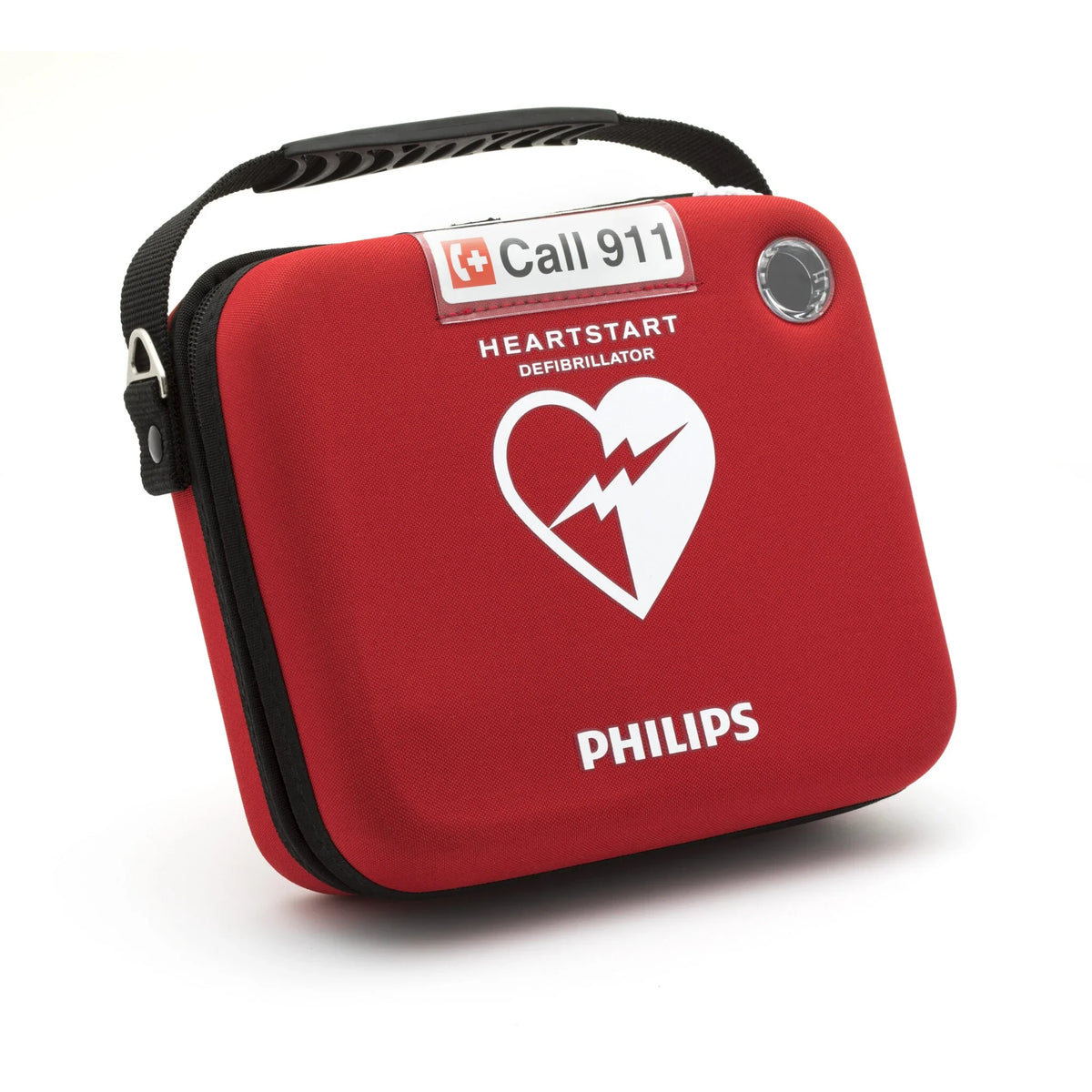

Philips HeartStart OnSite AED standard red carry case, closed, with Call 911 pocket

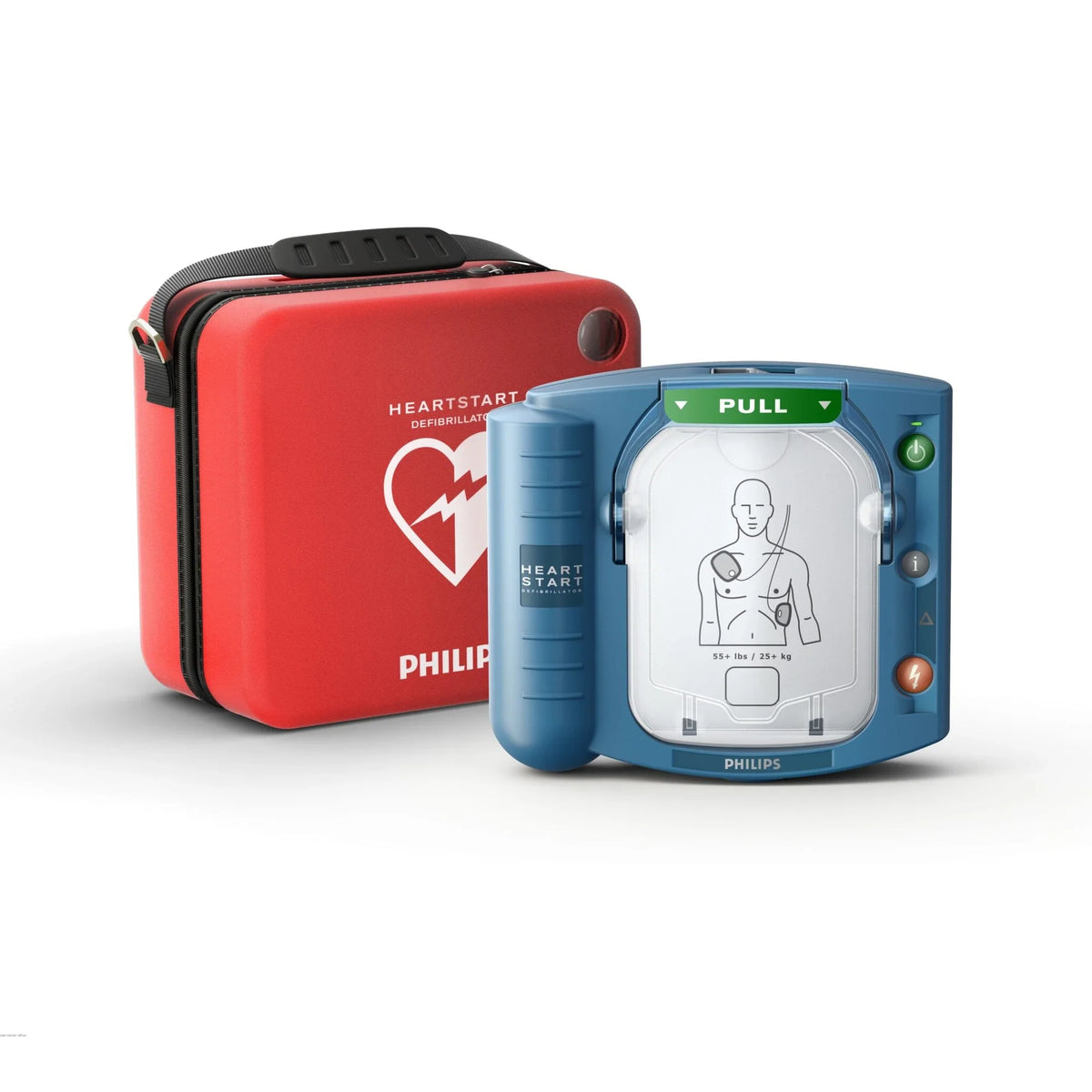

Philips HeartStart OnSite AED unit next to its standard red carry case

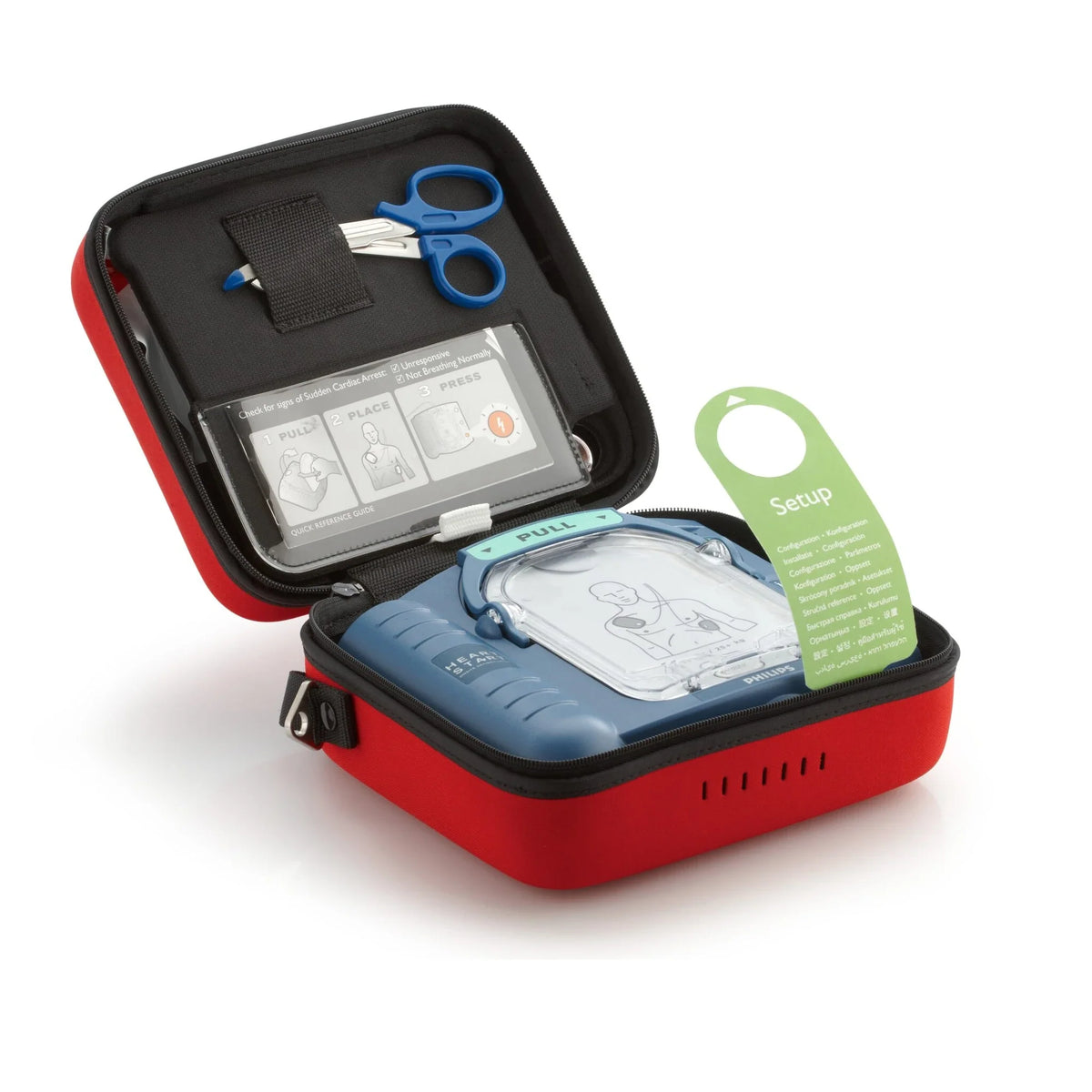

Philips HeartStart OnSite AED standard carry case open with the unit inside, setup tag and medical shears

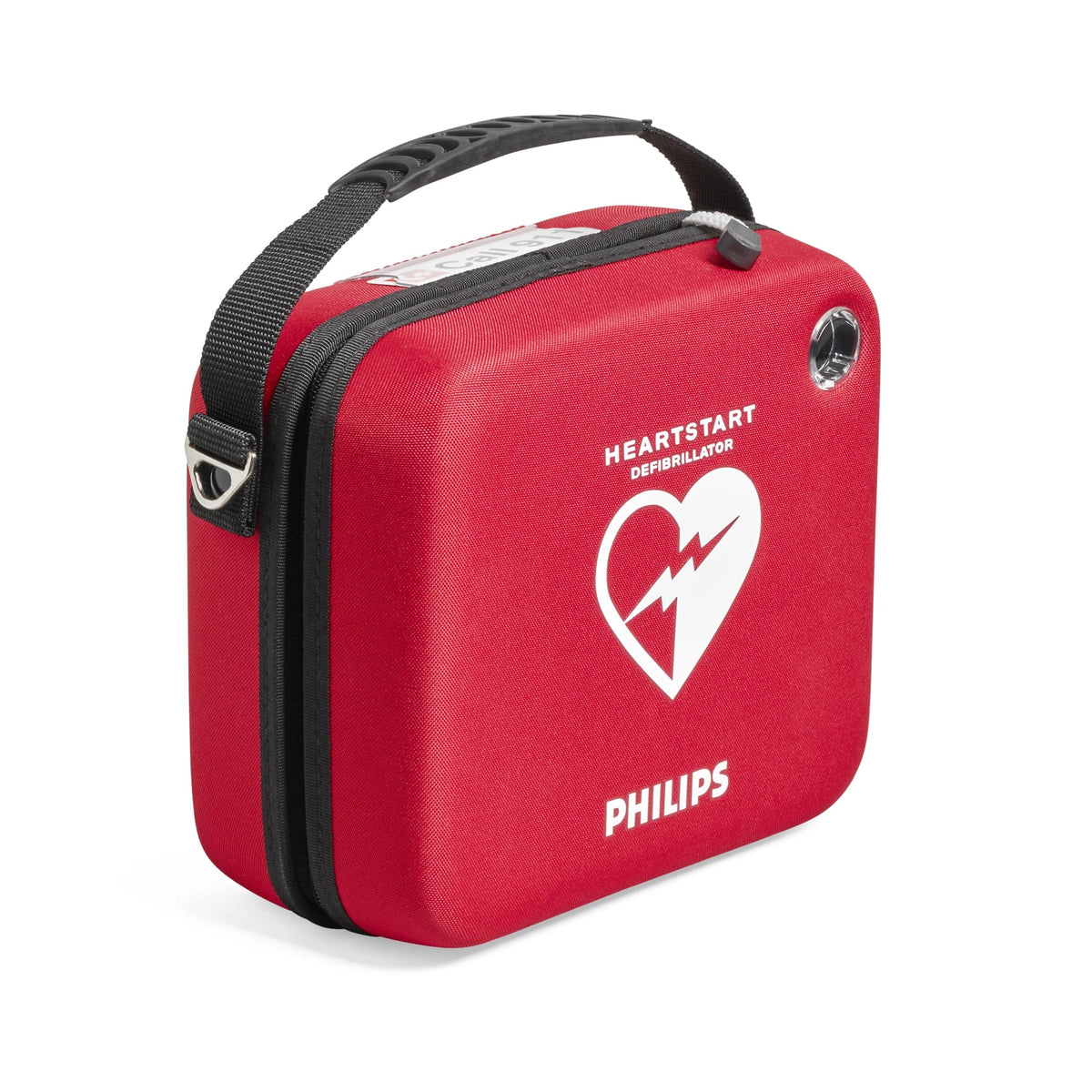

Philips HeartStart OnSite AED standard carry case closed, angled view

Automated External Defibrillators (AED)ManufacturersPhilips

Philips HeartStart OnSite AED M5066A

The Philips HeartStart OnSite AED is a lifesaving device designed for rapid response in emergency cardiac situations. This automated external defibrillator (AED) is user-friendly and easily accessible for both medical professionals and laypeople alike. Designed with Philips’ state-of-the-art technology, the HeartStart OnSite AED ensures reliable performance, empowering users to take control in critical moments.

4-Year Battery; 2-Year Pads Cartridge

8-Year Manufacturer Warranty

FDA Approved

$1,589.00

Choose Option:

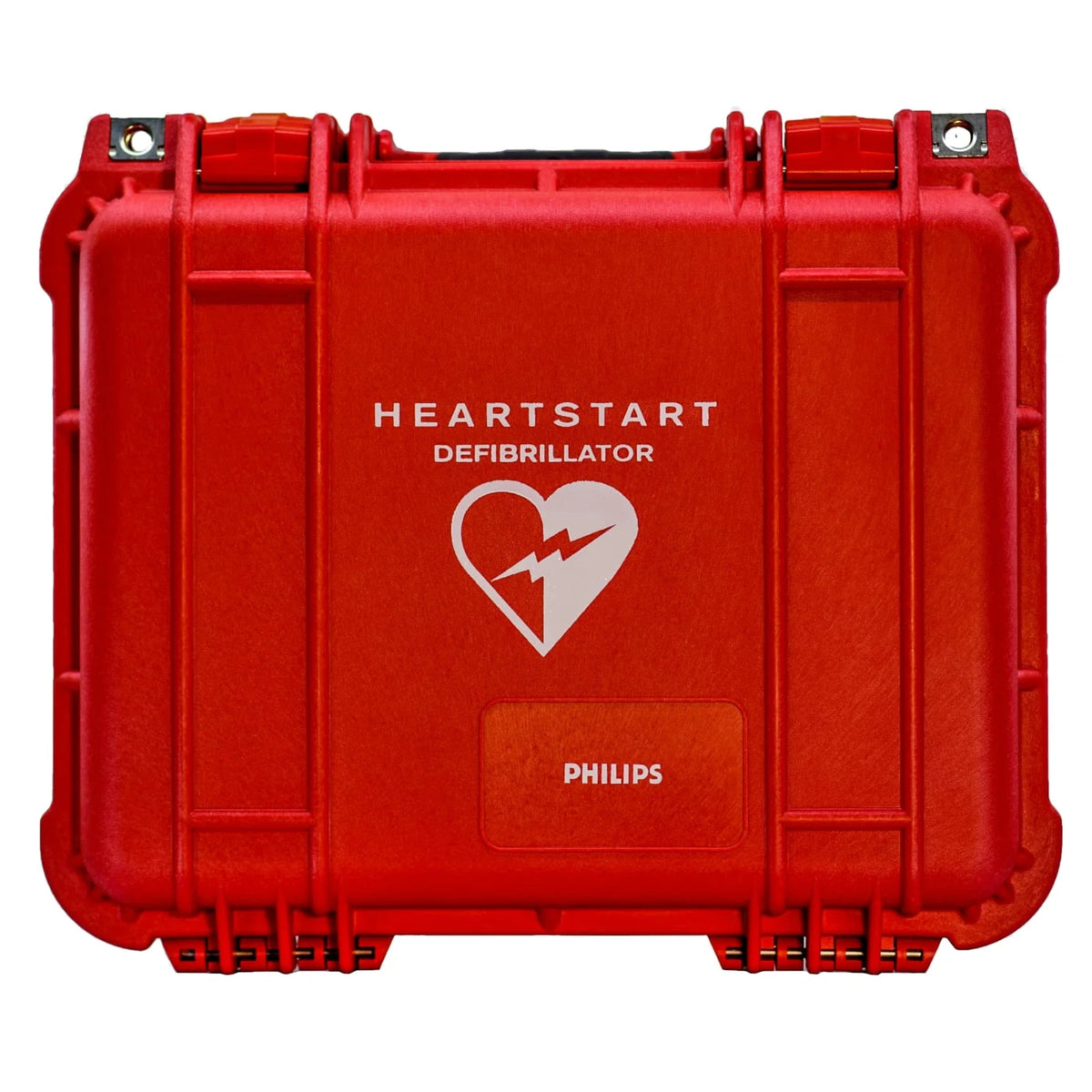

Slim Carry CaseStandard Carry CaseStandard Carry Case + Spare PadsWaterproof Carry Case

Quantity:

ZSH-M5066A-N

Philips HeartStart OnSite AED M5066A

$1,589.00

Top Features

Designed for the untrained responder — pull the green handle to activate, then follow real-time step-by-step voice commands from pad placement through CPR.

Energy Delivery

Delivers a SMART truncated exponential biphasic shock that adjusts to patient impedance — 32 A / 150 J nominal for adults, or 19 A / 50 J using the optional Infant/Child SMART Pads Cartridge (into a 50 ohm load).

CPR Feedback

Provides CPR instructions for both adult and infant/child rescue at the responder's selection, with detailed voice messages guiding each step.

Pediatric Mode

Fit the optional Infant/Child SMART Pads Cartridge (M5072A) and the unit delivers 19 A / 50 J nominal in place of the adult 150 J.

Battery & Pad Life

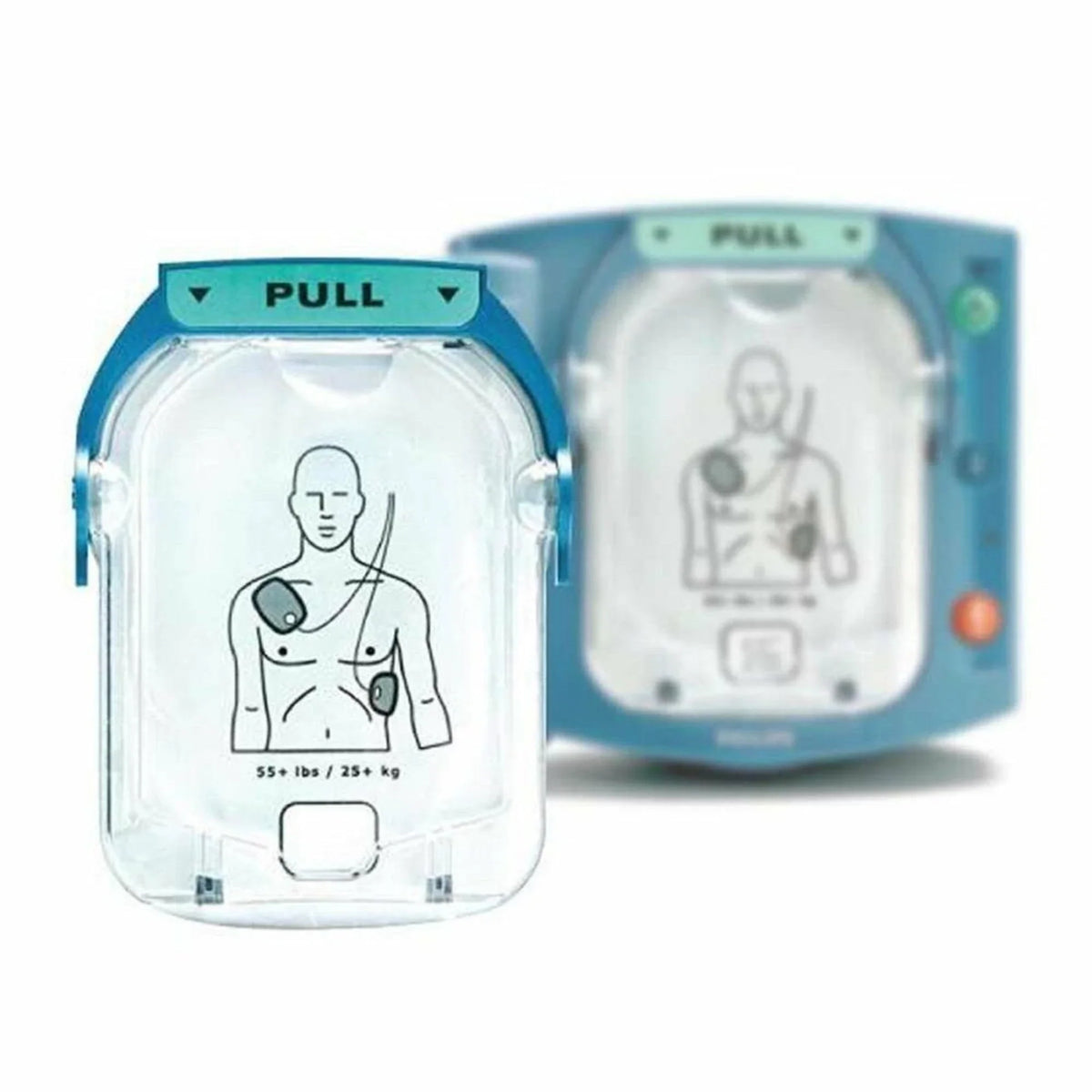

The M5070A battery typically holds a 4-year standby life when installed by its install-by date, and supports a minimum 200 shocks or 4 hours of operating time. The SMART Pads cartridge carries a use-by date at least two years from manufacture.

Weight & Dimensions

Weighs 3.3 lbs (1.5 kg) with battery and pads cartridge fitted, and measures 2.8 x 7.4 x 8.3 in (7.2 x 19 x 21 cm).

Warranty

8-Year Manufacturer Warranty; 4-Year battery warranty.

Who the Philips HeartStart OnSite Is Designed For

The HeartStart OnSite is built for a workplace where the person who grabs it has never used an AED. Pulling the green handle powers it on and starts the voice coaching, and the prompts run through pad placement and CPR without asking the responder to interpret anything on a screen. The rescuer can select adult or infant/child CPR instructions. It is semi-automatic, so the responder presses the orange Shock button. Energy is a SMART truncated exponential biphasic shock at 32 A / 150 J nominal for adults, or 19 A / 50 J with the optional Infant/Child SMART Pads Cartridge (M5072A) fitted. Note the IP21 rating, which is drip-proof rather than weather-resistant, so this is an indoor placement. A daily automatic self-test checks circuitry, waveform delivery, the pads cartridge, and battery capacity, and an audible chirp signals that maintenance is needed. It weighs 3.3 lbs. Warranty is 8 years on the device and 4 years on the battery.
